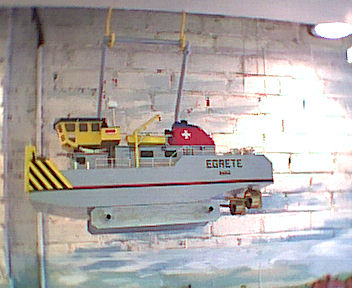

John Richardson - Pusher tug - Egrete




The drawings were
first published as ' Freebies ' in Model Boats, May 1988 issue. I put them aside with a mental note to think about building a model some time in the future. In the interim I built a Kerr Stuart  ' Wrenn ' Class locomotive of 1920'2 vintage on 5inch gauge track, and commenced a 1922 Allchin traction engine in 1 1/2" scale. 5 years into the traction engine, and around the Christmas holiday I felt like a break from the demanding work in steel and alloys and thoughts returned to the ' Egrete ' a Rhine pusher, which I believe is one of two pursuing it's trade today.


The published plans (
still available from Nexus ) are for a model constructed in Styrene sheet but although I have great regard for the work of  Richard Webb in this medium,  the engineer in me demanded something possibly more substantial. I decided on timber and ply construction throughout.

The timber frames and strakes were constructed using timber recovered from the carcass of redundant kitchen cabinets. The material used ( some years ) ago was knot free high quality pine and could be ripped to size on the band saw and subsequently planed to size. The joy being that the material cost nothing, except my labor, that is ! The ply was marine quality 1.5mm ply from the local model shop.




The sections on the drawing were developed with the vertical members of the frames extended to a common level to allow inverted construction of the hull on a perfectly flat 3/4 ply building board.

The hull is of rectangular section throughout with only a small amount of bending of the strakes required at the bow, almost like building an inverted box !

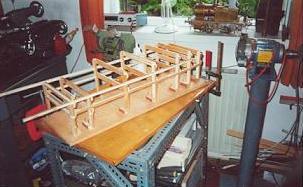

With the frames erected and true the strakes were installed using brass pins and  PVA adhesive, bought by the 4.5 liter container. It is always useful around the house and come in at about 1/3 the price or less than the small bottles in which it is otherwise sold. In passing it is far more economic to buy hot glue sticks by weight at a building supply store than in the bubble pack at DIY or model shops.

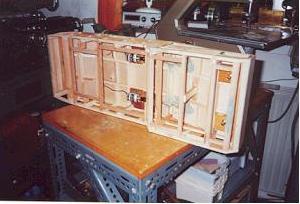

As soon as frames and strakes were completed hardwood blocks were installed as the bases for the motor mounts, also ply gussets in the sloping section where the propeller shafts pass through the hull.  The hull bottom sheeting was commenced, and the motors and propeller shafts installed. Vertical alignment of the motors and shafts was simple as it was possible to sight the alignment through the unsheeted sides of the hull. Bottom sheeting completed by persuading the ply around the gentle upsweep at the bow.

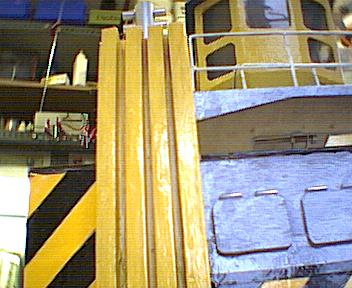

Substantial rails were inserted to allow firm fixings for the push posts to be added later. This has since proved to be a wise move as these posts take impact loading when coupling to a load

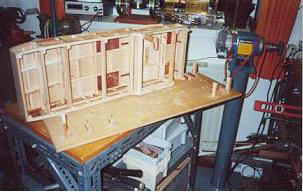

At this stage the hull was severed from the building boar, always an exciting moment.. With only the bottom sheeting installed the structure proved to be extremely rigid, such that all further sheeting and installation could be carried out without any distortion of the hull.

Of course the deck beams already existed as part of the frames and it was only necessary to remove the parts that interfered with superstructure location and access an to trim these with more  ' Kitchen cabinet material '

Side sheathing and decking were again simple operations due to the box section of the hull.

The overall design of the vessel permits the superstructure to be constructed integral with the hull and deck, avoiding problems with water ingress in ' Heavy weather '  Decking throughout the hull and superstructure is flat, again simple to install, first though the push post, sawn from hardwood, must be securely screwed in place from within the hull.

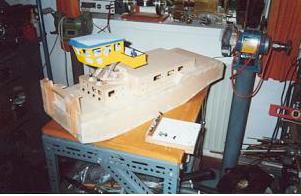

Superstructure front and sides were reinforced with strip wood, placed to provide support for the upper decks. Miscellaneous fixings and fixtures were added from ply and styrene sheet to complete the overall appearance. Painting included shellac sealer, primer, undercoat and two coats of Dulux !


The bridge deck, on ' Scissor ' supports to allow it to be lowered to pass beneath bridge arches, is an important feature of the craft and calls for a lot of fretwork to achieve the many openings and complicated form. A model was first constructed in card and the panel outlines transferred to 1.5mm ply. PVA adhesive coupled with an assortment of wooden blocks for support  whilst the PVA hardened ensured a rigid and accurate bridge
deck. Glazing was from 1/16" Perspex fixed using contact adhesive.

The scissors were cut from aluminum sheet and combined with 1/8" diameter rod, threaded 8BA as required to provide the up, and down motion, yet to be motorized. Considerable care was required to get the whole mechanism working freely.






The cable guides on the foredeck were built from brass rod and sheet brass, the decision taken at this stage to fill in the cable ports ( unlike those on the prototype ) has proved to be a wise step in view of the water that washes up the square bows at speed.

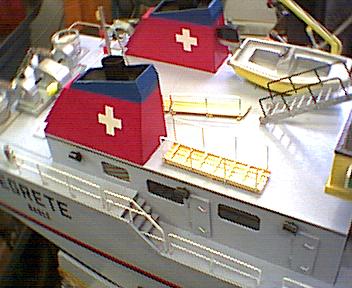

 Stacks are from ply. The companionway which accommodates the rise and fall of the bridge deck from brass strip and rod, and the railings from brass rod too. Bollards are from styrene, as is the dory complete with the outboard motor. The crane and fold down mast are from brass tube, the parts  again soldered. The styrene sheet used for the dory was recovered from the bottom of a Walls ice cream carton, the source of material for many of the buildings on my model railway…… economy again !

 Brass sheet was bent around a coke bottle used as a former and soldered up to make steerable 'Kort ' type nozzles around the fixed propellers. The steering servo is mounted under a hatch which supports the hawser baskets, also the anchor winches and chain troughs. The shafts of the anchors are within tube supported from the hull by bolted brackets.

The anchors are again soldered from tube and plate,  in practice they are extremely important as they are used to anchor the vessel against the pull of the winches in the winch house at the bow. Having lost an anchor in a collision on the water the model now has a protective rail around the anchors just above water level.


 The pusher was completed by the addition of restraints for the 6V 12Ah  Battery, the Msonics digital speed controller and the Action multiswitch ( installed with future working features in mind )

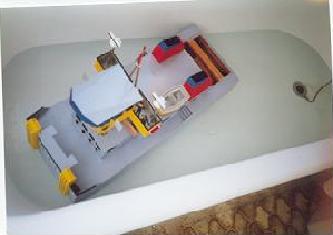

On the water the model is a joy to operate, steering is precise and immediate, the two 480 motors providing more than adequate power and  speed.  The unusual nature of the boat causes a lot of interest although many people are puzzled by the shape and think that it is some sort of ferry !

All in all, simplicity of build and excellence of performance make the Rhine pusher an extremely rewarding model in all respects.

Regards,
John Richardson
