« on: October 25, 2010, 08:39:04 PM »

Hello

I m show you the built of my second boat. Itís an express cruiser of 45 feets. I m inspire of the spider of Cantieri di sarnico. I m made it with my son Lucien.



After a modeling on delftship I drawing on autocad alls plans of pieces, kell, and sections in first.


The modeling


The outside view


The pieces
Logged

Abfil

  • Guest
Re: Express yacht windstorm 45
« Reply #1 on: October 25, 2010, 08:45:47 PM »

I built keel upward. There re 7 sections in plywood in thickness 5 mm. The keel is made with 2 pieces of plywood 5 mm. Notches are cut for piece of wood 5x5 mm for consolider.






Bye

Philippe
Logged

gwa84

  • Guest
Re: Express yacht windstorm 45
« Reply #2 on: October 25, 2010, 10:37:01 PM »

nice work would like to see more  :-))
Logged

Abfil

  • Guest
Re: Express yacht windstorm 45
« Reply #3 on: October 26, 2010, 10:23:01 AM »

Hi everybody

Thanks !

Here is now the pose of pieces 5x5 mm. There re only 4. Two for the corners and two for the deck plate.




The floor of bath is stiked behind the first section with fobs.



For the bow, I could not to arch the piece. Itís too little. Then I cutted plywood with the good shape. I added fobs in same material.



Bye

PS adress of plans
http://plansmodelismeyacht.blog4ever.com/blog/index-333923.html


Logged

martno1fan

  • Full Mayhemer
  • *****
  • Offline Offline
  • Posts: 2,506
  • Location: Blackpool
Re: Express yacht windstorm 45
« Reply #4 on: October 26, 2010, 03:14:20 PM »

Very nice work my only concern is the thickness of ply your using as it might end up a tad heavy,might be something to think about but nice work all the same  :-)).
Mart
Logged

Abfil

  • Guest
Re: Express yacht windstorm 45
« Reply #5 on: October 26, 2010, 03:28:01 PM »

With the software delftship I calculated a weight of 1,9 Kg . I m not afraid. I think use accus less heavy than battery. I wait after the pose of hull for weigh it.
Logged

Abfil

  • Guest
Re: Express yacht windstorm 45
« Reply #6 on: October 27, 2010, 12:03:19 PM »

hello, the continuation ..

Now that the skeleton is very stiff, I pursue with the pose of hull. There re 4 boards. 2 for bottoms and 2 for sides. I m begin with bottoms and after sides


First botton


Second botton


The pose of sides is more dificulte because the bow is very waisted. I m put in water the wood for soften it


Before of to stick top of hull Lucien sand that who exceed.

Bye

PS adress of plans
http://plansmodelismeyacht.blog4ever.com/blog/index-333923.html

Logged

Abfil

  • Guest
Re: Express yacht windstorm 45
« Reply #7 on: October 29, 2010, 10:07:35 AM »

Hello

Now, we are going to put other pieces of wood 5x5 for access to the front of boat. There is 4. We added also a section in alft of the floor of bath.
Tne little board stick on. We used paper size for drawing it correctly.





Bye

PS adress of plans
http://plansmodelismeyacht.blog4ever.com/blog/index-333923.html
Logged

martno1fan

  • Full Mayhemer
  • *****
  • Offline Offline
  • Posts: 2,506
  • Location: Blackpool
Re: Express yacht windstorm 45
« Reply #8 on: October 29, 2010, 02:33:29 PM »

Very nice work
Logged

Abfil

  • Guest
Re: Express yacht windstorm 45
« Reply #9 on: November 03, 2010, 11:29:17 AM »

hello

Now I m stick pieces of access to  the bow. There re built in 4 parts. It's board of samba in tickness 2 mm




Then I m start the bath board. It s easy to make. 2 boards, up and down and between fobs cut not parallel




The suburd is dress with a lot of pieces of wood and after sanded




Under I have stick a board the aesthetics

Bye

PS adress of plans
http://plansmodelismeyacht.blog4ever.com/blog/index-333923.html
Logged

Abfil

  • Guest
Re: Express yacht windstorm 45
« Reply #10 on: November 05, 2010, 07:45:38 PM »

good evening

I show you, now, the built of the stern. It s enough difficult to do. I use a lots of pieces.


I start by pose the low part



Then I make the block at port and  starboard


After I stick a piece in forme of U. It's the outline of the sun mattress

Bye

PS adress of plans
http://plansmodelismeyacht.blog4ever.com/blog/index-333923.html
Logged

steamboatbob

  • Guest
Re: Express yacht windstorm 45
« Reply #11 on: November 06, 2010, 11:51:53 AM »

fantastic build mate hope it all goes well for ya :-))
Logged

Abfil

  • Guest
Re: Express yacht windstorm 45
« Reply #12 on: November 08, 2010, 07:54:59 PM »

Hi guys

This is the continuation of stern




Pose of the base of the staircase


stick flask of staircaise


beginning of pose of stern



Bye

Philippe

Logged

Abfil

  • Guest
Re: Express yacht windstorm 45
« Reply #13 on: November 09, 2010, 07:49:09 AM »

Hi guys

This is the continuation of stern




Pose of the base of the staircase


stick flask of staircaise


beginning of pose of stern





Bye

Philippe


Logged

Abfil

  • Guest
Re: Express yacht windstorm 45
« Reply #14 on: November 13, 2010, 05:42:47 PM »

hi

I have just finish the stern !


Every piece of wood have been sand for his place ! I do still the step of staircase


 the result ! I m enough satisfied

Bye


PS adress of plans
http://plansmodelismeyacht.blog4ever.com/blog/index-333923.html
Logged

Abfil

  • Guest
Re: Express yacht windstorm 45
« Reply #15 on: November 17, 2010, 03:19:24 PM »

hi guys

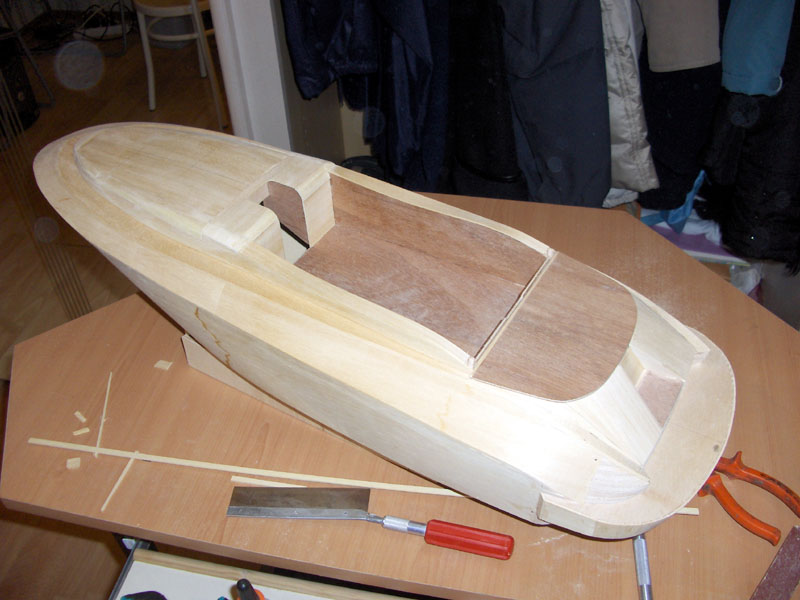

now I begin the cockpit . I start by floor and faces. After I cut pieces of roof. And for finish I start the pose of board




stick of all pieces of cockpit and roof


 stick of wood rod


 Pose of the biggest board of roof


Practically all the boat is equipped

Bye

Philippe

PS adress of plans
http://plansmodelismeyacht.blog4ever.com/blog/index-333923.html
Logged

Abfil

  • Guest
Re: Express yacht windstorm 45
« Reply #16 on: November 30, 2010, 10:21:11 AM »

Hi !

The work go slowly, it's more difficult now. I stick boards of roof and outside face of cockpit. A lot of surfaces are convex. I need many pieces.










Bye

Philippe

PS adress of plans
http://plansmodelismeyacht.blog4ever.com/blog/index-333923.html
Logged

Abfil

  • Guest
Re: Express yacht windstorm 45
« Reply #17 on: December 19, 2010, 06:31:11 PM »

Hello everybody

This is the last progress on my boat. I just finish the top of cabin.






Bye

Philippe

PS adress of plans
http://plansmodelismeyacht.blog4ever.com/blog/index-333923.html




Logged

gwa84

  • Guest
Re: Express yacht windstorm 45
« Reply #18 on: December 19, 2010, 10:19:26 PM »

just so excellent work im loving watching this come together cant wait to see a finished ship sailing away
Logged

Abfil

  • Guest
Re: Express yacht windstorm 45
« Reply #19 on: January 08, 2011, 04:35:55 PM »

Hello guys

I make the windscreen with pieces of wood.

It's very oblique like that the boat is more sport. It go faster  {-)


At this time the two main pieces of boat are built: The hull and the roof and cockpit.


I can start to begining the arrangement.
In first I assemble sats of sofa,


then I make all the pillows.


After I make sideboard kitchen.


It begin to look like at a cruiser !


Bye

PS adress of plans
http://plansmodelismeyacht.blog4ever.com/blog/index-333923.html
Logged

Abfil

  • Guest
Re: Express yacht windstorm 45
« Reply #20 on: January 20, 2011, 06:16:23 PM »

Hello

I  continue the built and I finish the inside of cockpit. The sofa on port, the stage and armchair of driver and the dashboard !

It's a little job, but all thinks are longer to make !

Here are the images

The stage of post piloting


The port sofa


Armchair driver




The dashboard


Pose to white

Bye

PS adress of plans
http://plansmodelismeyacht.blog4ever.com/blog/index-333923.html


Logged

w3bby

  • Full Mayhemer
  • *****
  • Offline Offline
  • Posts: 773
  • Location: Helsingborg, Sweden
Re: Express yacht windstorm 45
« Reply #21 on: January 20, 2011, 09:12:33 PM »

Love watching the progress on this build :-)) :-)) :-)) Far more patience and skill than I could ever put into a project O0 O0 O0 Looking forward to seeing the finished boat and the running vids.
Must say I'm surprised by the lack of feedback from the "regular" contributors............
